SKU: PLLK5011KD Lockitt PL5011A UCS Puck Padlock Flat Back

Lockitt 5011A Puck Style Padlock UCS
Flat back with pre-threaded mounting holes

Now with our universal interchangeable cylinder

Under 1 lbs, our puck lock weighs about half of other solid steel versions. Use it on trailer or van double rear or side doors in combination with a puck lock hasp and keep your content safe.

This version puck lock has a flat back and is used mostly inside special hasps like our HPPL7705. The pre-threaded back allows this puck lock to stay permanently mounted in one side of the hasp. This allows one hand operation and/or eliminates having the lock in hand when open.

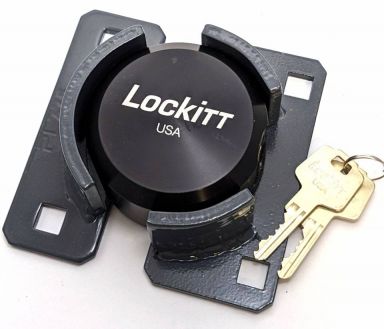

This lock can be permanently mounted* on our PL770 and PL775 hasps as well as many other branded hasps. *Screws are supplied with the hasp only

• High Security 6 pin pick resistant Cylinder
• Machined from a solid bar of Aircraft Grade 6061 Aluminum
• 2 keys per lock
• Made in USA (cylinder sourced overseas)

Dimensions:

Body diameter : 73mm - 2-7/8"
Body height :38mm - 1-1/2"
Shackle opening depth clearance : 32mm - 1-1/4"
Shackle opening width : 44mm - 1-3/4"
Shackle opening height : 15mm - 19/32"
Distance pin from back of lock : 8.5mm - 11/32"

Materials:
Lock Body: 6061 Aluminum
Cylinder: Brass

Specs:
Cylinder Type: Tumbler 6 Pin
Security pins: Yes
Rekeyable: Yes
Weight: 14.2 oz
Number of keys: 2

UPC: 850038259174
