SKU: AMRM9000 RAM Mounts Finger Grip™ Brake/Clutch Reservoir U-Bolt Mount Kit

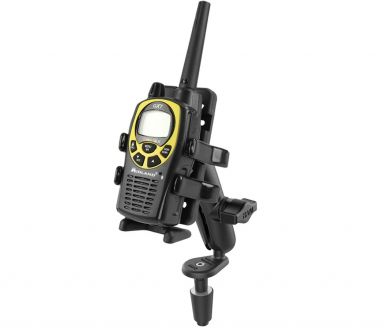

RAM Mounts Universal Finger Grip™ Combination Brake/Clutch Reservoir U-Bolt Mount Kit
# RAM-B-174-UN4U

This kit consists of hardware for mounting to either brake/clutch reservoirs and rails (that are 0.5" to 1.25" in diameter), double socket arm, diamond adapter 1" B size ball base, and universal Finger Grip^™ cradle. Designed to hold a large variety of cell phones, GPS devices, and radios on your Motorcycle, ATV, UTV, Car, Boat and More!

See the Fitment tab to confirm your device will fit within the size range of this cradle.

• This RAM mounting base will fit Goldwing, Harley Davidson and pretty much all other motorcycles. The perch mount holes centers have a minimum width of 0.94" (24mm) and a maximum of 1.58" (40mm). If you are not sure if the RAM-B-309-1U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir.
• Double socket arm is 3" length from socket-to-socket.
• Comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device.
• The flexible fingers open by squeezing the ends to open the small finger arms.
• Bottom of the holder includes a back plate that adds support to the device being held by the mount.
• Spine plate contains the universal AMPs and 1.5" x 2" hole patterns.
• Marine-grade aluminum and high strength composite.
• Backed by a lifetime warranty.

Hardware Included:

• (2) M6 x 55mm Hex Bolts
• (2) 1/4-20 x 2" Hex Bolts
• (2) 1/4"-20 x 2.5" Hex Bolts
• (2) 1/2" Spacers
• (2) 1/4" Split Lock Washers
• (1) 1/4"-20 U-Bolt for .5" - 1" Rails
• (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
• (2) 1/4"-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

Designed to hold devices within the following size ranges:

Height Dimensions:

• Minimum with Top and Bottom Plates: 5.25"" (134mm)
• Maximum with Top and Bottom Plates: 6.0"" (152mm)
• The top and bottom plates can be removed for larger devices

Spine Plate Dimensions: 3"" (76mm) Width x 3"" (76mm) Height

Using Short Arm Side Clamps:

• Maximum Depth: 0.75"" (19mm)
• Minimum Width: 1.25"" (32mm)
• Maximum Width: 3.0"" (76mm)

Using Medium Arm Side Clamps:

• Maximum Depth: 1.25"" (32mm)
• Minimum Width: 1.5"" (38mm)
• Maximum Width: 3.5"" (89mm)

Using Long Arm Side Clamps:

• Maximum Depth: 1.6"" (41mm)
• Minimum Width: 2.25"" (57mm)
• Maximum Width: 3.5"" (89mm)
